Side Mounted Valve F/Glass

Side Mounted Valve F/Glass


Maintenance free, high performance sand filters. Manufactured with a non-corrosive gel coat finish.
Hi-Rate Filter
Non-Corrosive Gel Coated Fibreglass Case
A.B.S. Pipework and Underdrains
See-through Tank Lid
Automatic Air Bleed Tube
Backwash Indicator Pressure Guage to 35 p.s.i./4 Bar
Easy-reach Drain plug
6 Position Multiport Valve

find out more

Left tabK+ Advanced Bead FilterRight tab

Online Catalogue | Evolution Aqua Products |  K+ Advanced Bead Filter

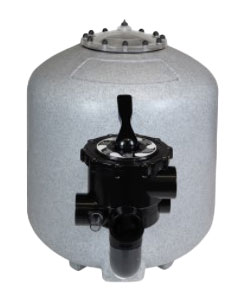

K+ Advanced Bead Filter Introducing Evolution Aqua's latest innovation in pond filtration technology, the K+Advanced Filters. Manufactured by Evolution Aqua in the UK, this new range of pressure filters have been specifically designed to use Evolution Aqua’s own filtration media, K+Media, to deliver exceptional water clarity and to be economical to run.

Key Features
• Manufactured to last using latest rotational moulding process for peace of mind
• Supplied with advanced K+Media, delivering enhanced mechanical and biological filtration
• Economical to run. The filter has been engineered to maximise pump efficiency
• The colour matches existing Evolution Aqua filters
• Easy to operate and clean, with pipework, blower and multiport valve supplied.


SoftFuse Nice Tables Preview

K+ Advanced Bead Filter Perameters

>
ModelFilter DiameterMax Pond Size Optimum Flow Rate K+ Volume Muliiport Valve Size Max Working Pressure
!nches(mm)Litres (UK Gallons)Litres/hr(UKgals/hr) litres inches bar K+ Advanced Bead Filter 2020 (508)18,000 (4,000)6000(1320)501½1.5K+ Advanced Bead Filter 24 24 (609)36,000 (8,000)12000 (2640)10021.5K+ Advanced Bead Filter 30 30 (762)54000 (12000)18000(3960)15021.5
K+ Advanced Bead Filter 36 36 (900)91000 (20000)30000 (6600)25021.5

For Further details Refer to The Installation Manual below


K+ Advanced Bead Filter Manual

Click icon alongside to download

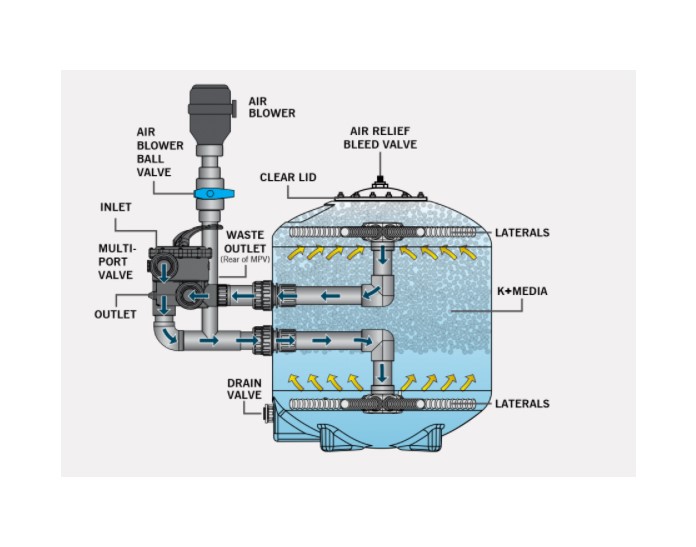

K+ Advanced Bead Filter Arrangement

How K+Advanced Filters work?

Water is pumped into the filter from the pond, through the multi-port valve where the internal pipework directs the water to the bottom laterals.

As the water flows upwards inside the K+Advanced Filter, dirt, debris and waste are trapped within the mass of K+Media that floats at the top of the filter. The vast protected surface area provided by K+Media also provides a home for beneficial bacteria, delivering mechanical and biological filtration.


The filtered water flows back through the laterals and pipework at the top of the filter, through the multi-port valve and back down the return line into the pond.

The K+Advanced Filter, is incredibly easy to clean by simply moving the handle on the multi-port valve into the corresponding positions to perform a backwash and rinse which flushes out the waste trapped inside.

K+ Advanced Micro Bead Filter 20

K+ Advanced Micro Bead Filter 20
Ref: K1+MBF20		K+ Advanced Bead Filter Suitable for ponds up to18,000 litres (4,000 )UK Gallon!

Includes Media and Blower

See Table Above


Price: £995.00 (Including VAT at 20%)


K+ Advanced Bead Filter 24

K+ Advanced Bead Filter 24
Ref: K1+MBF24

K+ Advanced Bead Filter Suitable for ponds up to36,000 litres (8,000 UK Gallons)

Includes Media and Blower

See Table Above


Price: £1,095.00 (Including VAT at 20%)




K+ Advanced Bead Filter 30

K+ Advanced Bead Filter 30
Ref: K1+MBF30

K+ Advanced Bead Filter Suitable for ponds up to 54,000 litres (12,000 UK Gallons)

Includes Media and Blower

See Table Above


Price: £1,295.00 (Including VAT at 20%)




K+ Advanced Bead Filter 36

K+ Advanced Bead Filter 36
Ref: K1+MBF36

K+ Advanced Bead Filter Suitable for ponds up to 91,000 litres (20,000 UK Gallons)

Includes Media and Blower

See Table Above


Price: £1,595.00 (Including VAT at 20%)
